TerminalGB · Rendering

271 colours in a four-shade picture

A Game Boy screen has four shades in it. On GNOME-family terminals TerminalGB was drawing it with 271, and the picture looked soft in a way that should have been impossible.

TerminalGB Terminal · half-blocks 27 Aug 2026

271

Distinct colours on screen

Shades a Game Boy has

0.460 → 0.349

ms per whole frame

Lines of somebody else's code

A terminal that speaks no image protocol gets the picture drawn out of the upper-half-block glyph ▀. The foreground colour paints the top half of a character cell, the background paints the bottom, two vertical pixels per cell. That is crisp by construction — a cell is two flat colours and there is nothing inside it that can be soft.

And yet on Ptyxis it was visibly blurry, and on WezTerm it was not. Same binary, same ROM, same scale.

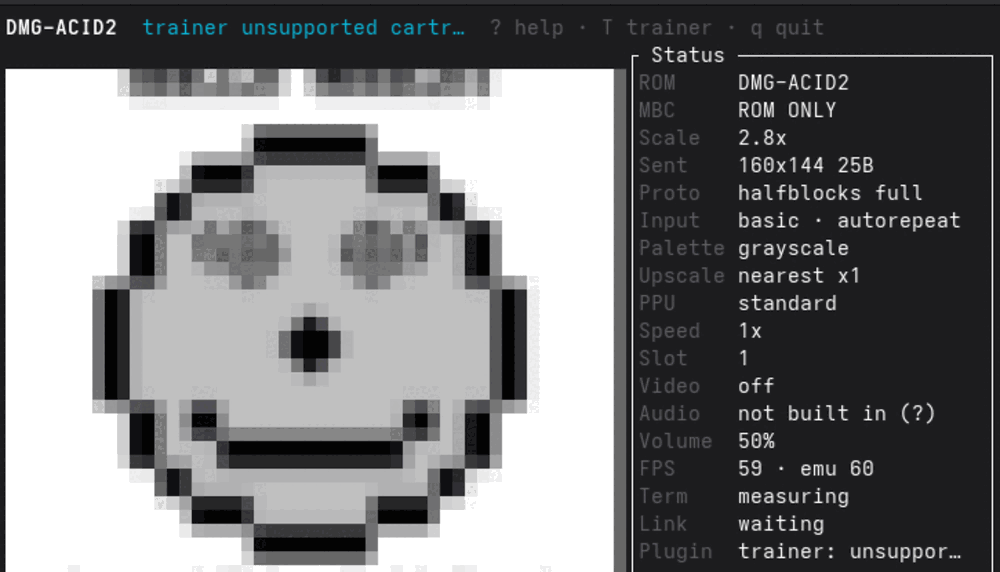

The dmg-acid2 demon face drawn with half-block characters, visibly soft and smeared, with grey fringes around every edge. — Every cell is a weighted average of the Game Boy pixels underneath it.

The same dmg-acid2 demon face drawn with half-block characters, now with hard edges and flat blocks of tone. — Sampled nearest-neighbour at pixel centres, straight out of the framebuffer.

Both captures in Ptyxis 50.1 at 80×24 cells, 2.8× scale, one binary, two render paths.

The softness was never in the glyph

It was in the sampling, four lines down in a dependency:

let img = img.resize_exact(rect.width as u32, (rect.height * 2) as u32,
                          FilterType::Triangle);

ratatui-image-4.2.0/src/protocol/halfblocks.rs. The same crate's Sixel encoder does no such thing, and Resize::Scale's own default filter is FilterType::Nearest. Half-blocks was the one path with a filter baked in — which is why WezTerm, on the Sixel path, looked right.

Measured on dmg-acid2 at 80×24 cells: 271 distinct colours, 268 of which no Game Boy shade maps to.

The fix samples the cells directly, nearest-neighbour at pixel centres, the same rule the video scaler already used. It also writes a uniform cell as a space rather than ▀, so a font with a poor block glyph cannot soften the large flat areas a Game Boy picture is mostly made of.

Doing the work ourselves is cheaper

This is the part that surprised me. The new path pays a full sampling cost on every frame and still wins: over roughly 1,070 frames at 146×54 cells, same ROM and window both sides, whole-frame time went from 0.460 ms to 0.349 ms.

It replaces two image-crate resizes — a nearest upscale to the display's pixel size, then a Triangle downscale back to the cell grid. One pass of arithmetic beats two passes of somebody else's.

The guard is a property, not a pixel

Blur has now been reported twice here, so the regression test asserts the thing that matters: every colour on screen must be a colour that was in the framebuffer. No interpolating resampler can satisfy that.

One unit test runs a one-pixel checkerboard — the worst case for a smoothing filter — at five window sizes. One end-to-end test drives the real render on dmg-acid2 at four.

The same trap, one repository over

PixelGB extracts map art from a running cartridge and guards its output on the same rule — no colour may appear that was not in the source — and cites this incident as the reason.

The timing figures come from the emulator's own opt-in telemetry over roughly 1,070 frames at 146×54 cells, same ROM and window both sides. The screenshots were taken in Ptyxis 50.1 on the machine the fix was made on.
