AgentGB

A small local network that plays Pokémon Blue from the screen and nothing else. A picture goes in, a button comes out, on any emulator, at no inference cost worth measuring. It runs the game's opening — bedroom to the Pokédex in Oak's hand, sixteen links — from a cold boot.

145/150

16-link chain, cold boot

122,330

Weights in the shipped file

40×36

The whole of its input

Bytes of cartridge memory it may read

models/pixel-student.npz, sha256 b2bb7908…7262c109. Sampled at temperature 1.0, N=150 cold boots. A rate here always names the weights it belongs to.

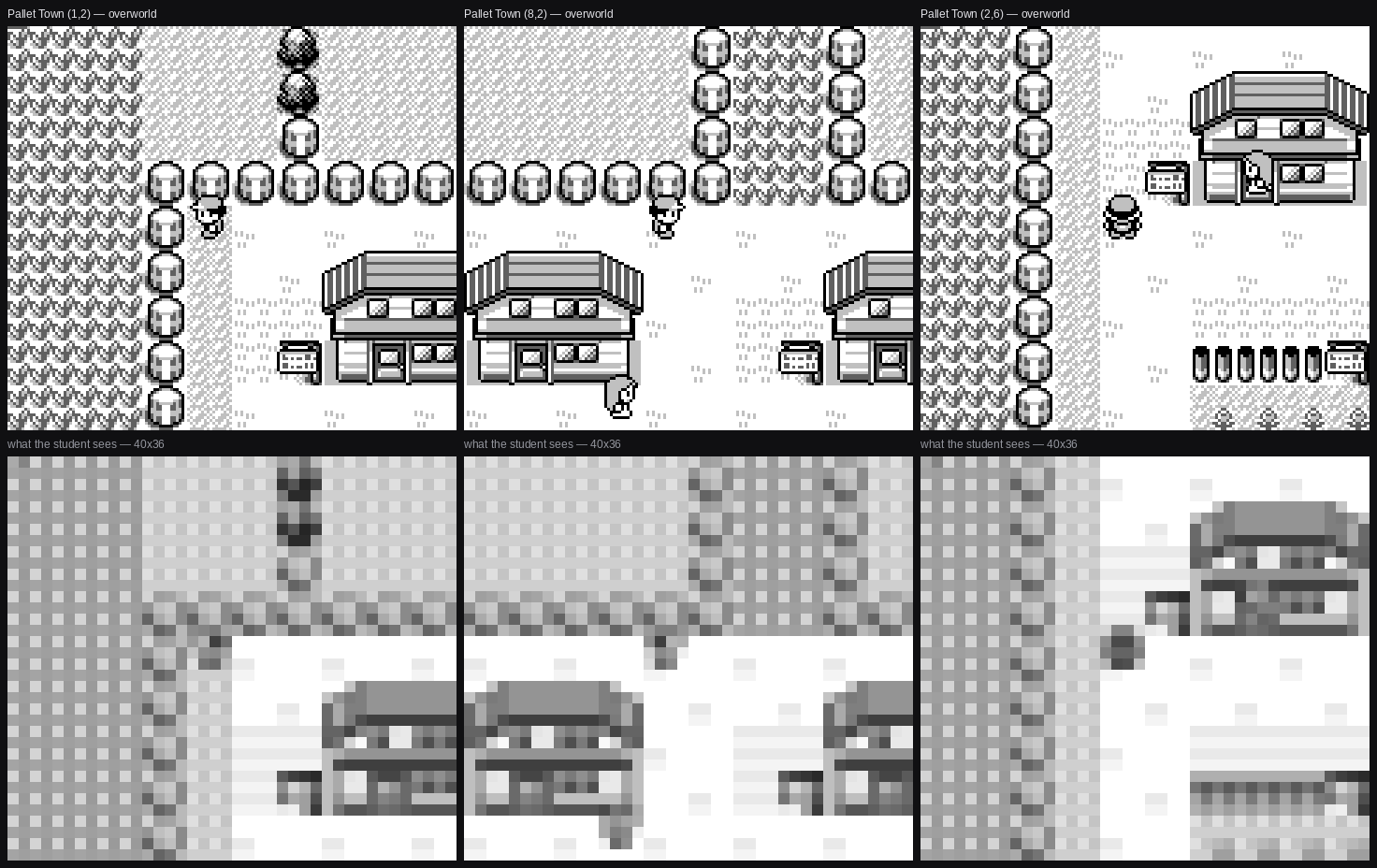

Two rows of Game Boy screens. The top row is the emulator's 160x144 output; the bottom row is the same frames reduced to a coarse 40x36 four-level grid and blown back up for comparison. — Top: what the emulator draws. Bottom: the whole of the student's input, blown back up so the two can be compared — a 4×4 mean pool of the 160×144 picture, four ink levels, four frames stacked. Fences, buildings and tall grass survive. People survive as small dark blobs, which is why the pool is 4×4 and not 8×8.

What it does

The player

Screen in, button out

Input is four stacked 40×36 frames at four ink levels — no coordinates, no map id, no memory read of any kind
Output is one of six buttons
Goal-conditioned: the network derives which part of the chain it is in rather than being told
Exports to ONNX and runs through foreign runtimes

How it is trained

A teacher, a corpus, a student

A scripted teacher reads the cartridge's memory and walks a shortest path — no network is asked to rediscover pathfinding
It writes a corpus: one screen, one button, per decision. No weights pass through it
The student is trained on that corpus by behavioural cloning, then DAgger rounds. A quarter of the collection is a random driver, because a competent teacher never produces the picture of facing a wall
Fixes since the star pupil are adapters that nudge a frozen base, proven byte-identical before and after

How it is judged

The cartridge keeps the score

Success is a byte the cartridge writes, read out of the machine at the moment a goal is claimed, with host-enforced no-memory-writes so nothing the policy does can make that byte lie
Certification runs 3,000 attempts a link, over held-out start tiles
Every rate is reported per starter as well as in aggregate
Two start-offset spreads on everything: 0–96 frames and 0–3,000, because the gap between them is how brittle a student is

Where it runs

Not just our emulator

The committed weights drive the eleven-link opening on mGBA's libretro core from a genuine cold power-on — every matrix multiply through a foreign runtime
Fan-out certification across twenty workers
A swarm view: many emulated Game Boys at once, each at its own world position

The swarm view in the one place a map position can't show it: 600 of 600 live agents reach Brock at once, and the map cuts to each agent's own real screen the instant it enters a battle — a battle has no position on the map — then returns to the walked view as agents leave the gym.

Current scores

All of these belong to models/pixel-student.npz, sampled at temperature 1.0.

What was run	N	Result
Whole 16-link chain, cold boot to the Pokédex	150	145 (96.7%)
— of those, starting BULBASAUR	90	87 (96.7%)
— starting CHARMANDER	13	13 (100%)
— starting SQUIRTLE	47	45 (95.7%)
Take a starter, reaching the goal	500	499 (99.8%)
Both doubling-back rooms, after the text trigger	3,000 ea.	100.0%
18-link attempt, two independent draws	16, 16	13, then 9

The starter is the student's own choice, read back off the cartridge by the harness; the network never sees which one it took. At the entry tile the first decision carries 0.992 bits of entropy and the split over 500 attempts is 254 / 118 / 127. The eighteen-link row is an attempt, not a certification, and is not counted as one.

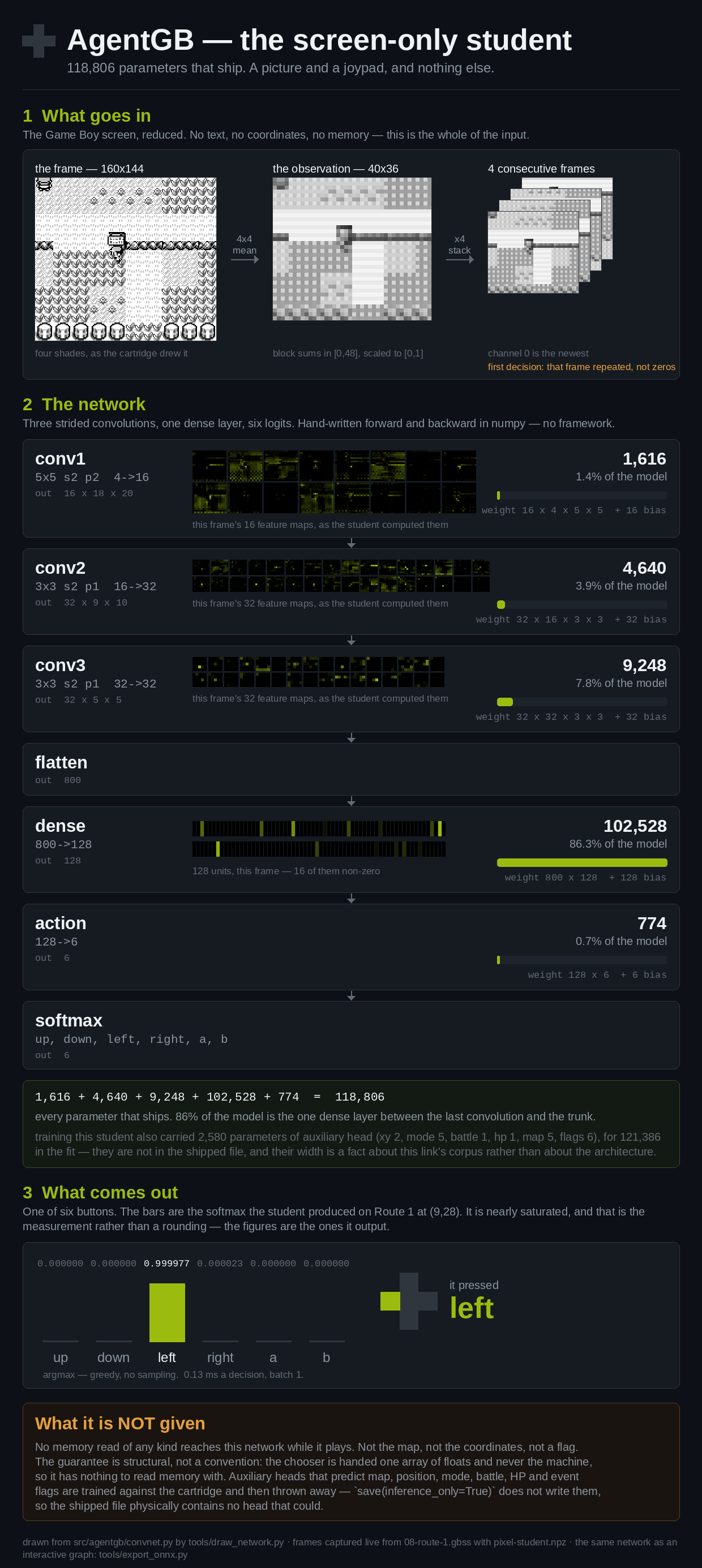

A technical sheet drawing the student network: three convolution layers with their live feature maps, a dense layer, and a six-bar softmax output at the bottom. — The student, drawn from a live policy object. The feature maps beside each convolution are that frame's own activations; the six bars at the bottom are the softmax it actually produced. 86% of the model is the single dense layer between the last convolution and the trunk — 102,400 weights of 118,806. The three convolutions together are 13%. The expensive part of a convolutional network is the flattening.

The design, in one paragraph

Reinforcement learning asks one network to learn two jobs from one scalar reward: where to go, and what am I looking at. AgentGB splits them. Where to go is a search problem, and search is solved — a shortest path over a walkable graph does it. What am I looking at is a perception problem, which is what networks are good for. The student's whole job is to see, which is why it is a hundred thousand parameters and not millions.

The price is that the teacher half is allowed what the student never is: the cartridge's memory and a map walked in advance. An end-to-end agent needs neither. The split is not novel — the PokéAgent Challenge's winning entry decomposes a route into subgoals and distils the result into a network, and the third-place entry paired deterministic pathfinding with a language model. Two of the top three cut the same seam.

What is still not true

Sixteen links is the game's opening, not the game. The chain ends in the second town. Everything after that is unbuilt.
The eighteen-link chain is not close. Two draws of 16 read 13 and 9. On the new stage the split is SQUIRTLE 4/12 against BULBASAUR 17/18, reproduced across both draws and not chased to a cause. Part of it is the room: that link's own scripted teacher solves 620 of 800 episodes, with several held-out tiles dead.
N=150 is not N=3,000. The headline certification bounds a failure rate near 2%, not 0.1%.
Recorded seeds do not replay exactly. Floating-point non-associativity across BLAS thread counts flips a near-tie early in a long sampled trajectory and the run diverges, so a per-decision replay is not evidence about the episode it was meant to explain.
The foreign-emulator sweep is behind the student. The mGBA run covers the eleven-link opening. Nothing portable has been re-run at sixteen.
Training is noisy and the noise is measured. Five runs of one identical configuration on one link scored 100.0, 92.3, 92.3, 84.6 and 77.0 per cent — a 23-point band, most of it the seed. Why that was worth a day →

Writing

The whole arc in order, with the number that was true at each point, is on the progress page.

Where these numbers come from

The parameter counts are read out of the committed weights file: three convolutions 15,504, the dense layer 102,528, the six-way head 774 — 118,806 for the inference core — plus 320 conditioning coefficients and a 3,204-parameter goal head for 122,330. The file's own metadata records in_shape [4, 36, 40], n_actions 6, observation "screen".

Every rate carries the weights file it was measured on, its sample size and its temperature, and is recorded in the source repository beside the command that produced it. Both images are committed artefacts of real runs, copied here byte-for-byte apart from PNG re-compression. Game art is Nintendo and Game Freak's and appears here as documentation of a measurement; the project ships no cartridge, no save and no game data.
